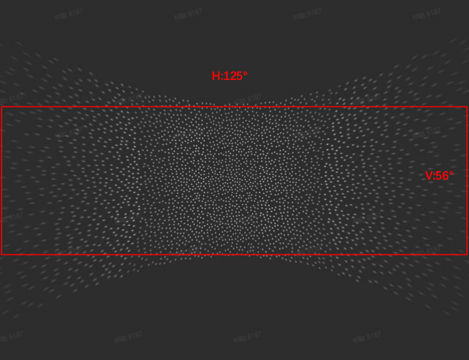

FOV:125×56°; wavelength 940nm; Lens size(mm) 1.9×1.9
$60.00
Discount per Quantity
| Quantity | 50 - 100 | 100 - 1000 | 100000 + |
|---|---|---|---|
| Discount | 0% | 20% | 97% |
| Price | $60.00 | $48.00 | $1.80 |
This product requires prior confirmation. Orders placed directly without contacting us in advance cannot be processed.
100 in stock
| Wavelength
unit:nm |
FOI（HxV）
unit:deg |
Lens Size
（HxV） unit:mm |
Recommended Number of Emitting apertures | Dot-Matrix Replication Counts（HxV） | Total Dot Counts | Far-Field Divergence Angle unit：deg | Transmittance | Overall Efficiency | Current Status | Mass-Production Delivery Timeline | |
| MCPD391940 | 940 | 125×56 | 1.9×1.9 | 221 | 5×3 | 3315 | 0.41 | 71% | 68% | Small‑batch samples available in January 2026 (CNY 20,000 / 50 pcs) | Three Months After MP PO |
| Specification | |
| Device Parameters | |
| Model | MCPD391940 |
| Material | Si, SiO2 |
| Thickness | 0.775 mm (±0.015) |
| Lens Size (H×V) | 1.9×1.9 mm (±0.025) |
| Active Metasurface Area (H×V) | 1.6×1.6 mm (±0.001) |
| BFL1 (Metasurface Facing Source) 1 | 1.202 mm |
| BFL2 (Metasurface Facing Away from Source) 1 | 0.673 mm |
| Dot-Matrix Replication Pattern (Periodic/Offset)2 | Periodic arrangement |
| Replication Count (Spots per Single-Aperture emitting aperture) | 5×3 |
| Transmittance (Total Output/Input Energy) | ~65% |
| Overall Efficiency (Array Output/Input Energy) | ~63% |
| Operating Temperature Range | -40°C to 250°C |
| Far-Field Divergence Angle (Central Spot) 3 | ~0.41° |
| Recommended Light Source | |
| Recommended emitting aperture Cavity Area (H×V) 5 | Contact us for further details |
| Projection FOI (H×V) with the Recommended Light Source | Contact us for further details |
| emitting aperture Arrangement (Periodic/Offset) | Contact us for further details |
| Number of Emitting Cavities | Contact us for further details |
| Total Spot Count w/ Recommended Source | Contact us for further details |
